Fyrtex 1 Nozzle

  • Type, size and service life identical to original
  • No difference in your drying process using our nozzles
  • Highest grades of raw material tungsten carbide
  • Delivery from stock at competitive prices
Request more info
Nozzle series 1 spray drying nozzles

Tungsten Carbide Wear Parts

Orifice disc 071 (1,80mm) spray drying nozzles

Orifice disc

Swirl Chamber Combined TCSE P5 front and backside vierkant spray drying nozzles

Swirl chamber combined

Swirl Chamber SE P5 without endplate spray drying nozzles

Swirl chamber without end plate

ENDRO Round Endplate spray drying nozzles

Round end plate

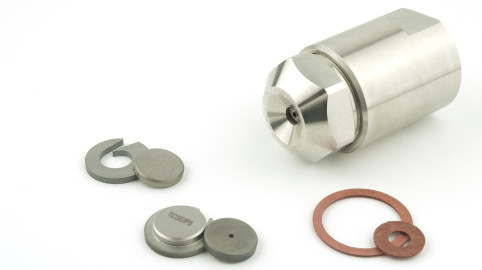

Fyrtex 1 Nozzle is the oldest in this series of nozzles. The nozzle consists of two, or at most three, tungsten carbide wear parts. The orifice disc can be used with a combined swirl chamber or alternatively with a swirl chamber without end plate together with a round end plate. The tungsten carbide wear parts are interchangeable with the wear parts for Fyrtex 3 Nozzle. The only difference is that the nozzles in Fyrtex 3 Nozzle use a square end plate instead of a round one.

The loose, round end plate cannot be used in our Superior High Pressure Atomizing Nozzle. We only offer original body and adapter parts for Fyrtex 1 Nozzle. All nozzle parts can be ordered separately in any quantity. To receive a quotation, contact us or click on the “Request a quote” button.

For more information, download the Fyrtex 1 Nozzle product guide.
